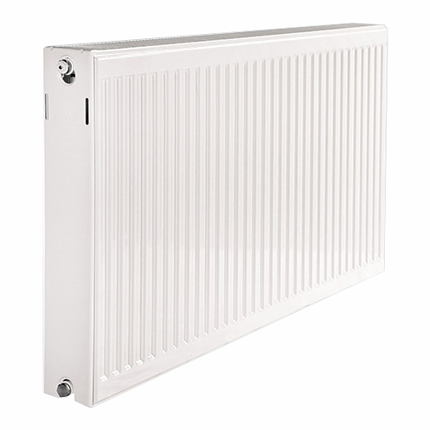

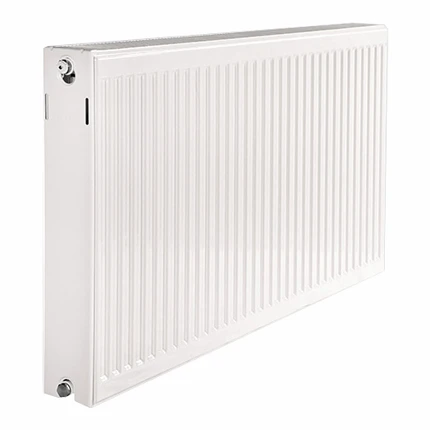

Steel panel radiator type 22 - 600 x 1800 mm (5510618)
SKU: 5510618
Available variants
| Size | Мощност ΔT = 50 (W) | Weight | Водосъдържание | SKU | |
|---|---|---|---|---|---|
| 300 x 600 mm | 944 W | 10.20 kg | 2.04 L | 5510306 | |
| 300 x 800 mm | 1258 W | 13.60 kg | 2.72 L | 5510308 | |
| 300 x 1000 mm | 1573 W | 17.00 kg | 3.40 L | 5510310 | |
| 300 x 1200 mm | 1888 W | 20.40 kg | 4.08 L | 5510312 | |
| 300 x 1400 mm | 2202 W | 23.80 kg | 4.76 L | 5510314 | |
| 300 x 1600 mm | 2517 W | 27.20 kg | 5.44 L | 5510316 | |
| 300 x 1800 mm | 2831 W | 30.60 kg | 6.12 L | 5510318 | |
| 300 x 2000 mm | 3146 W | 34.00 kg | 6.80 L | 5510320 | |
| 300 x 2200 mm | 3461 W | 37.40 kg | 7.48 L | 5510322 | |
| 300 x 2400 mm | 3775 W | 40.80 kg | 8.16 L | 5510324 | |
| 400 x 600 mm | 1086 W | 12.90 kg | 2.58 L | 5510406 | |
| 400 x 800 mm | 1448 W | 17.20 kg | 3.44 L | 5510408 | |
| 400 x 1000 mm | 1810 W | 21.50 kg | 4.30 L | 5510410 | |
| 400 x 1200 mm | 2172 W | 25.80 kg | 5.16 L | 5510412 | |
| 400 x 1400 mm | 2534 W | 30.10 kg | 6.02 L | 5510414 | |
| 400 x 1600 mm | 2896 W | 34.40 kg | 6.88 L | 5510416 | |
| 400 x 1800 mm | 3258 W | 38.70 kg | 7.74 L | 5510418 | |
| 400 x 2000 mm | 3620 W | 43.00 kg | 8.60 L | 5510420 | |
| 400 x 2200 mm | 3982 W | 47.30 kg | 9.46 L | 5510422 | |
| 400 x 2400 mm | 4344 W | 51.60 kg | 10.32 L | 5510424 | |
| 500 x 400 mm | 838 W | 10.88 kg | 2.04 L | 5510504 | |
| 500 x 600 mm | 1257 W | 16.32 kg | 3.06 L | 5510506 | |
| 500 x 800 mm | 1676 W | 21.76 kg | 4.08 L | 5510508 | |
| 500 x 1000 mm | 2095 W | 27.20 kg | 5.10 L | 5510510 | |
| 500 x 1200 mm | 2514 W | 32.64 kg | 6.12 L | 5510512 | |
| 500 x 1400 mm | 2933 W | 38.08 kg | 7.14 L | 5510514 | |
| 500 x 1600 mm | 3352 W | 43.52 kg | 8.16 L | 5510516 | |
| 500 x 1800 mm | 3771 W | 48.96 kg | 9.18 L | 5510518 | |
| 500 x 2000 mm | 4190 W | 54.40 kg | 10.20 L | 5510520 | |
| 500 x 2200 mm | 4609 W | 59.84 kg | 11.22 L | 5510522 | |
| 500 x 2400 mm | 5028 W | 65.28 kg | 12.24 L | 5510524 | |
| 600 x 400 mm | 1060 W | 12.76 kg | 2.44 L | 5510604 | |
| 600 x 600 mm | 1589 W | 19.14 kg | 3.66 L | 5510606 | |
| 600 x 800 mm | 2119 W | 25.52 kg | 4.88 L | 5510608 | |
| 600 x 1000 mm | 2649 W | 31.90 kg | 6.10 L | 5510610 | |
| 600 x 1200 mm | 3179 W | 38.28 kg | 7.32 L | 5510612 | |
| 600 x 1400 mm | 3709 W | 44.66 kg | 8.54 L | 5510614 | |
| 600 x 1600 mm | 4238 W | 51.04 kg | 9.76 L | 5510616 | |
| 600 x 1800 mm | 4768 W | 57.42 kg | 10.98 L | 5510618 | |
| 600 x 2000 mm | 5298 W | 63.80 kg | 12.20 L | 5510620 | |
| 600 x 2200 mm | 5828 W | 70.18 kg | 13.42 L | 5510622 | |
| 600 x 2400 mm | 6358 W | 76.56 kg | 14.64 L | 5510624 | |
| 900 x 400 mm | 1455 W | 19.40 kg | 3.28 L | 5510904 | |
| 900 x 600 mm | 2182 W | 29.10 kg | 4.92 L | 5510906 | |
| 900 x 800 mm | 2910 W | 38.80 kg | 6.56 L | 5510908 | |
| 900 x 1000 mm | 3637 W | 48.50 kg | 8.20 L | 5510910 | |
| 900 x 1200 mm | 4364 W | 58.20 kg | 9.84 L | 5510912 | |
| 900 x 1400 mm | 5092 W | 67.90 kg | 11.48 L | 5510914 | |
| 900 x 1600 mm | 5819 W | 77.60 kg | 13.12 L | 5510916 |
Description

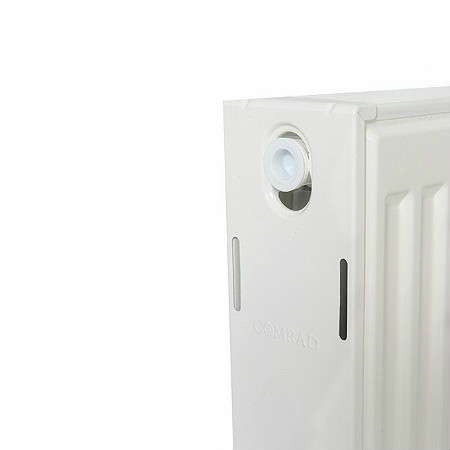

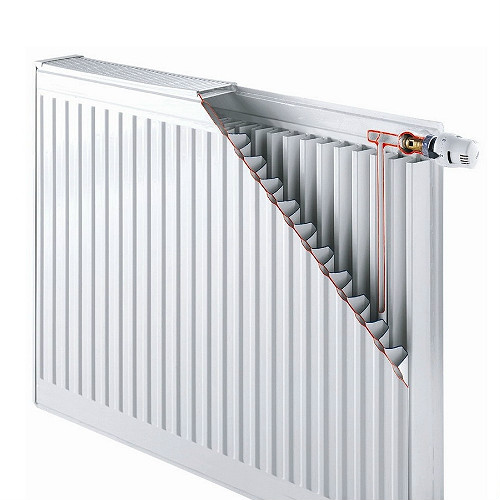

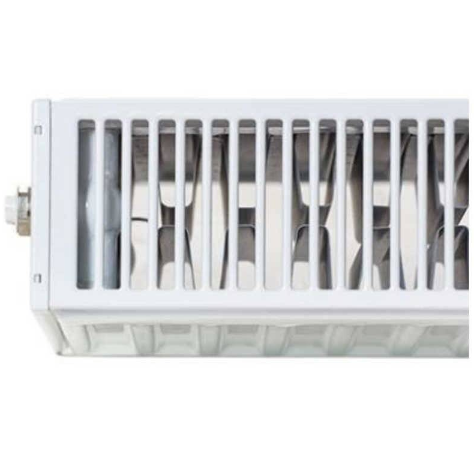

The COMRAD steel panel radiator is a type 22 double-panel radiator with double convector, providing greater heat output and efficiency. Manufactured from high-quality raw materials, protected by a coating applied using state-of-the-art methods for long-lasting durability.
The COMRAD steel panel radiator is available in a wide range of sizes to suit any room and heating installation. COMRAD is manufactured in accordance with the ISO 9000 quality system, followed by laboratory testing at 13 bar pressure. To ensure safe and comfortable installation, the manufacturer uses special protective packaging to protect all components during transport and installation.
Made from high-quality materials using the latest techniques, COMRAD guarantees high heat output efficiency and attractive design, creating warmth and comfort in any room.
