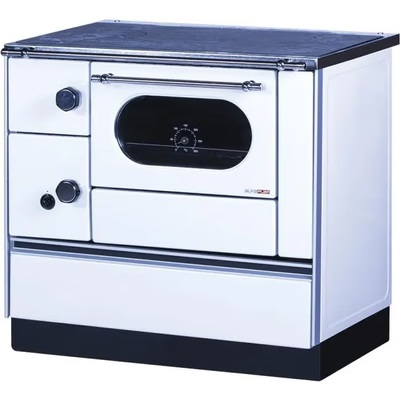

Cooking stove with water jacket ALFA TERM 27 – right oven (5614002)

SKU: 5614002

Alpha Plam

Available variants

Model SKU
ALFA TERM 20 - лява фурна 5612001
ALFA TERM 20 - дясна фурна 5612002
ALFA TERM 27 - лява фурна 5614001
ALFA TERM 27 - дясна фурна 5614002
ALFA TERM 35 - лява фурна 5621001

Description

Multifunctional solid fuel cooking stove. An ideal solution for heating larger residential units with the possibility of preparing food in a traditional way.


Model

ALFA TERM 20

ALFA TERM 27

ALFA TERM 35

Code

left oven

5612001

5614001

5621001

right oven

5612002

5614002

5621002

Total nominal power

kW

22.9

27.56

32

Cooker nominal power

kW

8.7

7.44

10

Water jacket nominal power

kW

14.2

20.12

22

Dimensions (W x D x H)

mm

900x600x850

900x600x850

1100x600x850

Oven dimensions (W x D x H)

mm

460x440x260

330x440x260

460x440x260

Flue outlet diameter

Ø

150 mm

150 mm

160 mm

Water content

L

16

25

32

Heated volume

m³

345-575

402-670

480-800

Heated area

m²

138-230

160-268

192-320

Efficiency

%

74/77

74,4/75,9

71

Weight

kg

155

177

211

Multifunctional solid fuel cooking stove with an exceptional design and high quality. It is an ideal solution for heating larger residential units with the possibility of preparing food in a traditional way. The improved lid design allows maximum adaptation to user needs.

Advantages:

  1. Cooking on the entire surface of the steel top.
  2. Double heat-resistant glass on the oven door with a built-in thermometer.
  3. The built-in thermostat and pressure gauge provide additional product safety.
  4. Built-in special regulator for adjusting heating and cooking power.
  5. By regulating primary, secondary and tertiary air supply using regulators, the current boiler power and combustion efficiency are automatically adjusted.
  6. The two positions of the cast iron grate in the combustion chamber allow adjustment of the cooker operation according to weather conditions.
